Central Carolina Scale sells and services CAS Digital Price Computing Scales

CAS USA Corp. Computing Scale S2000 Jr w/ RS 232 Serial

CAS S-2000Jr. is a general purpose price computing scale for direct sale of commodities in stores such as: supermarkets, delicatessens and groceries. The Model S2000 Jr. is available in several different configurations, they include three multi-interval capacities and two display configurations. This scale has an eternal lb/kg conversion switch. The scale has dual markings and the lb/kg switch changes enunciators for proper indications. Tare weight may be entered using: platter tare, key board tare and tare programmed with a PLU.

LCD or VFD Displays
Stainless Steel Platter
1/2lb And 1/4lb Keys, Where Allowed
3 Direct PLU's -- 199 Indirect PLU's
Optional Pole Display
RS-232C Interface

Display: dual LCD or VFD, base mount or pole displays
Automatic zero setting mechanism (AZSM)
PLU capability, 199 numbers, 28 names
Initial zero setting mechanism (IZSM)
Tare: platter, key board, programmed with PLU Semi-automatic (push button) zero
Enunciators for: lb or kg and $/lb or $/ kg
Multiplier keys for 1/4 and 1/2 pricing, where permitted
AC power supply with internal recharging DC battery (LCD Models) with low battery indicator

*In order to purchase a S-2000Jr -- the choices you need to make are:*
*What display do I want? VFD or LCD*	VFD is green digits with black background. LCD is black digits with gray background. Battery power is available with LCD models but is NOT available with VFD models.
*Do I want a rechargeable battery?*	Only LCD display models have Batteries
*Do I want a Pole Display?*	Pole display which faces both operator & consumer is available for either VFD or LCD models
*What maximum weight am I going to be weighing?*	Max capacities include 15 lb, 30 lb or 60 lb in either VFD or LCD with or without pole.

Capacity Dual Range x Readability
Capacity: 15 lbs	0 ~ 6 x 0.002 lb	6 ~15 lb x 0.005 lb
Capacity: 30 lbs	0 ~ 15 x 0.005 lb	15 ~ 30 lb x 0.01 lb
Capacity: 60 lbs	0 ~ 30 x 0.01 lb	30 ~ 60 lb x 0.02 lb

<-- LCD / Pole / Battery / 60 lb Model

3 direct PLU’s & 199 Indirect PLU’s, Raised Rubber Tactile Keyboard, LCD w/ Backlight or VFD (Vacuum Fluorescent Display), Battery Operated(LCD Models), Stainless Steel Platter, AC Adapter Included, Kg/lb Switchable, Full Body Cover Platter Size: 12.0(W) x 8.7(D) / Overall Size: 12.9(W) x 13.6(D) x 4.2(H)

CAS S-2000JR Specifications
Weighing Capacity	15 lb: 0~6 x 0.002 lbs / 6~15 x 0.005 lbs
	30 lb: 0~15 x 0.005 lbs / 15~30 x 0.01 lbs
	60 lb: 0~30 x 0.01 lbs / 30~60 x 0.02 lbs
Display Digits	5/6/6 (Weight/Unit Price/Total Price)
Display Type	LCD/VFD (Vacuum Fluorescent Display)
Display Designators	Power, Zero, Tare, Low Battery, B/L
Power Source	AC 120V, 60 Hz .... Rechargeable Battery (6V, 3.6 Ah) LCD Models
R/C Battery Operating Time	120 Hours (LCD Models)
Charging Time	12 hr
Dimensions (inches)	Standard: 12.9 (W) x 13.6 (D) x 4.2 (H) Pole: 12.9 (W) x 15.2 (D) x 16.2 (H)
Temperature	32° ~ 104°
Product Weight	Approx 12 lbs

NTEP Approved 06-013 Legal for Buying & Selling

Pole Display -- Customer's View

Description / Part Number

Capacity x Readability

LCD Without Pole (AC/Batt pwr)

S2000JR-15-LCD
0~6 x 0.002 lbs / 6~15 x 0.005 lbs

S2000JR-30-LCD
0~15 x 0.005 lbs / 15~30 x 0.01 lbs

S2000JR-60-LCD
0~30 x 0.01 lbs / 30~60 x 0.02 lbs

LCD With Pole (AC/Batt pwr)

S2000JR-15-LCD-P
0~6 x 0.002 lbs / 6~15 x 0.005 lbs

S2000JR-30-LCD-P
0~15 x 0.005 lbs / 15~30 x 0.01 lbs

S2000JR-60-LCD-P
0~30 x 0.01 lbs / 30~60 x 0.02 lbs

VFD Without Pole (AC pwr only)

S2000JR-15-VFD
0~6 x 0.002 lbs / 6~15 x 0.005 lbs

S2000JR-30-VFD
0~15 x 0.005 lbs / 15~30 x 0.01 lbs

S2000JR-60-VFD
0~30 x 0.01 lbs / 30~60 x 0.02 lbs

VFD With Pole (AC pwr only)

S2000JR-15-VFD-P
0~6 x 0.002 lbs / 6~15 x 0.005 lbs

S2000JR-30-VFD-P
0~15 x 0.005 lbs / 15~30 x 0.01 lbs

S2000JR-60-VFD-P
0~30 x 0.01 lbs / 30~60 x 0.02 lbs

Options

Fish platter for S2000JR w/scale

Fish platter for S2000JR w/o scale

Full body protective cover for S2000JR

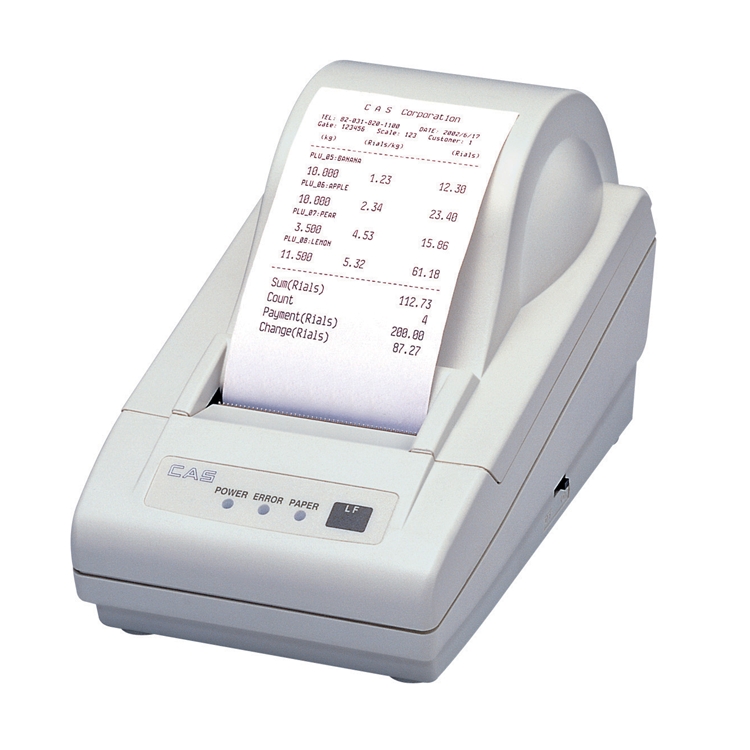

DLP-50 Label printer for S2000JR

Labels

LST-8060 55x25mm 550/roll, 12 rolls/case
